Setting up your Zwift Play
This video is all about setting up your Zwift Play controllers. Get ready for some serious fun.
| Left Zwift Play controller |
|---|
| Right Zwift Play controller |
|---|
| Handlebar spacers (×2) |
|---|
| Charge cable |
|---|
| Quick start guide |
|---|
READY, SET, ZWIFT PLAY
Welcome to your new Zwift Play! Here you’ll find everything you need to get started, including a video and illustrated guide that’ll walk you through using your new controllers. Let’s get into it.

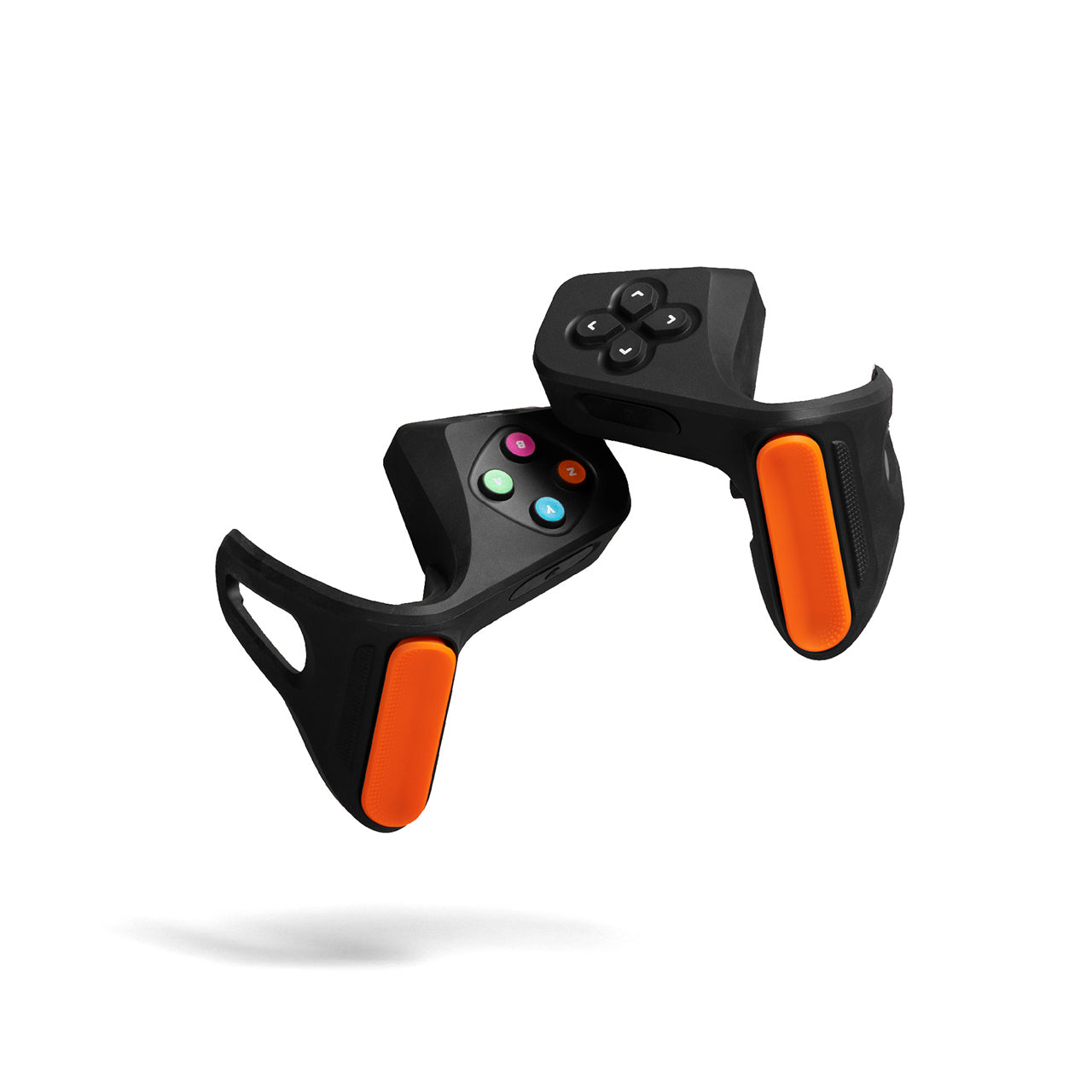

| Left Zwift Play controller |
|---|
| Right Zwift Play controller |
|---|
| Handlebar spacers (×2) |
|---|
| Charge cable |
|---|
| Quick start guide |
|---|
Identify your right and left controller.
Attach your Zwift Play controllers to your handlebar by placing them snugly under the appropriate brake hoods. Wrap the flexible strap around your handlebars and onto the hook.
Controllers not secure? Use the spacers provided.
Powering up your Zwift Play controllers is easy–just press the Zwift logo button. Once they’re on, the LED will flash blue to let you know they’re ready to pair.
Use provided cable to fully charge your controllers. The Z logo button will pulse green while charging. Find out more about the LED states on page 22.
Download the Zwift app on your preferred device and log in. Then, turn on your Zwift Play controllers and follow the on-screen instructions to connect them. That's all there is to it!
To keep your Zwift Play controllers firmware up to date, simply download the Zwift Companion app on your mobile device or tablet. You’ll receive a notification whenever a new update is available.
After using your Zwift Play controllers, they'll automatically go into sleep mode to conserve battery. When you're ready to use them again, press any button to wake them up.
| Size and Weight | |
|---|---|
| Dimensions: | 100mm (3.94in) x 95mm (3.74in) x 95mm (3.74in) |
| Weight: | 580g / 1.28lb (boxed) |
| Power | |
|---|---|
| Power: | Built-in rechargeable lithium-ion battery (1350-1400 maH) |
| Power Requirements: | USB-A, 5v, 1A |
| Connectivity | |
|---|---|
| Communication: | Bluetooth |
| Compatibility | |
|---|---|
| Handlebar compatibility: | Drop Handlebars only |
| Handlebar Diameter min/max: | min = 25mm (0.98in), max = 35mm (1.4in) |
| Shifter Compatibility: | Shimano, SRAM, Microshift, and some Campagnolo shifters.* (*Thumb shifters are not compatible) |
| Not compatible With: | TT Aero bars, Flat bars (e.g. hybrid or mountain bike), Drop bars with a dropper post, Campagnolo thumb shifters, Sprint shifters, Garmin Tacx Neo bike, WattBike smart bike and Stages bike. |
| Additional Specs | |
|---|---|
| Operating temperatures: | 5 - 45°C / 41°F - 113°F |
| Cable Specs: | Split cable, USB-A to USB-C, 1.5m (59.05in) |
| Zwift Play experience enabled by TG0 technology | |
