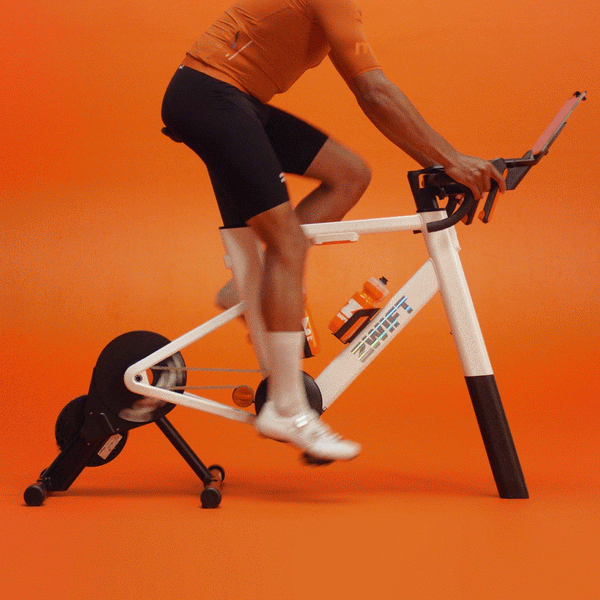

Zwift Ride Smart Frame Compatible Smart Trainers

Zwift Ride Smart Frame Handlebars with Zwift Companion

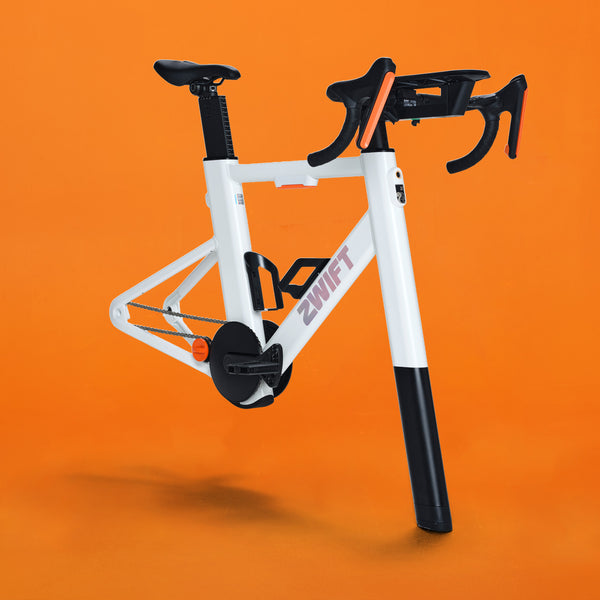

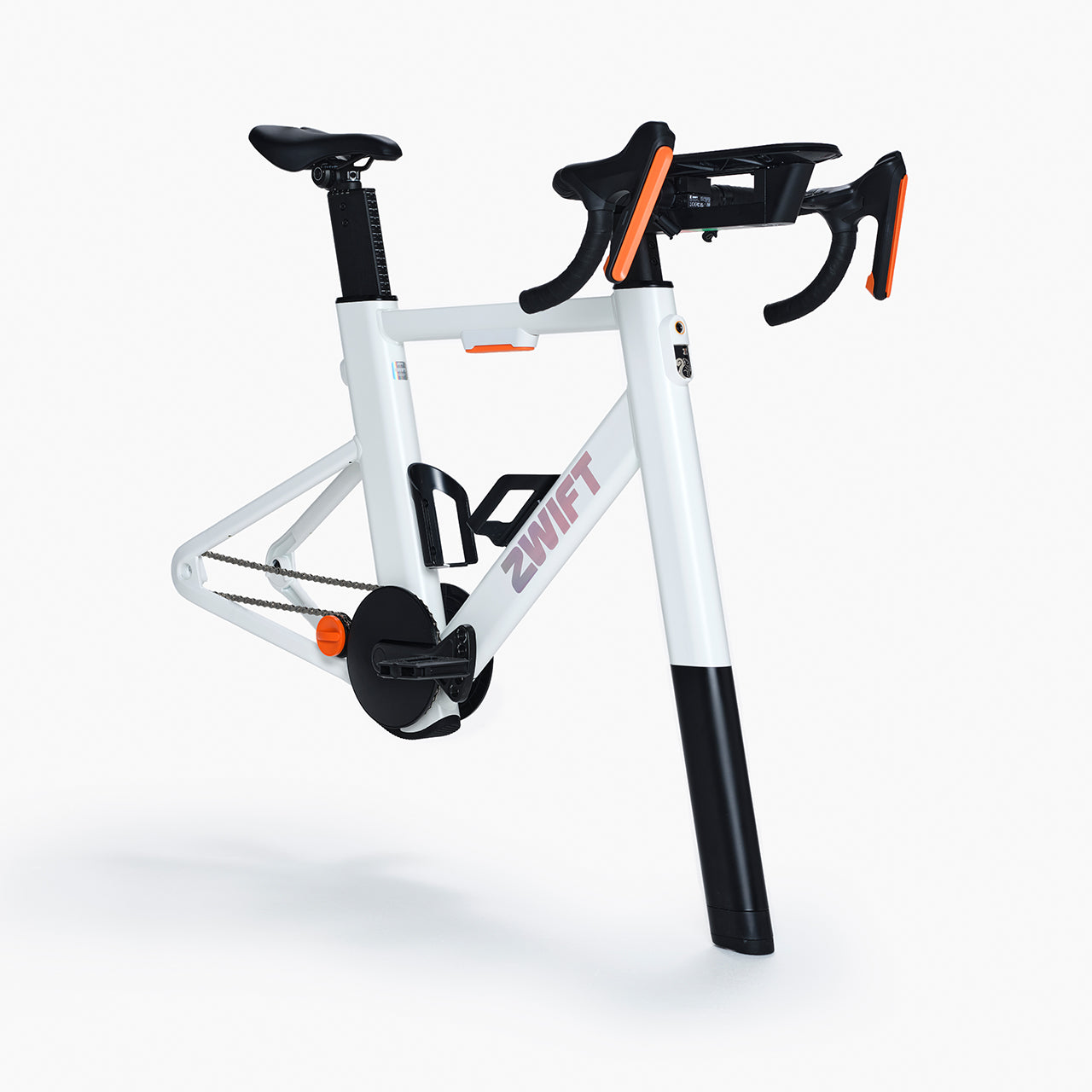

Zwift Ride Smart Frame

Name: Zwift Ride Smart Frame
Brand: Zwift
Price: 799.99 EUR
Availability: InStock

799,99 €

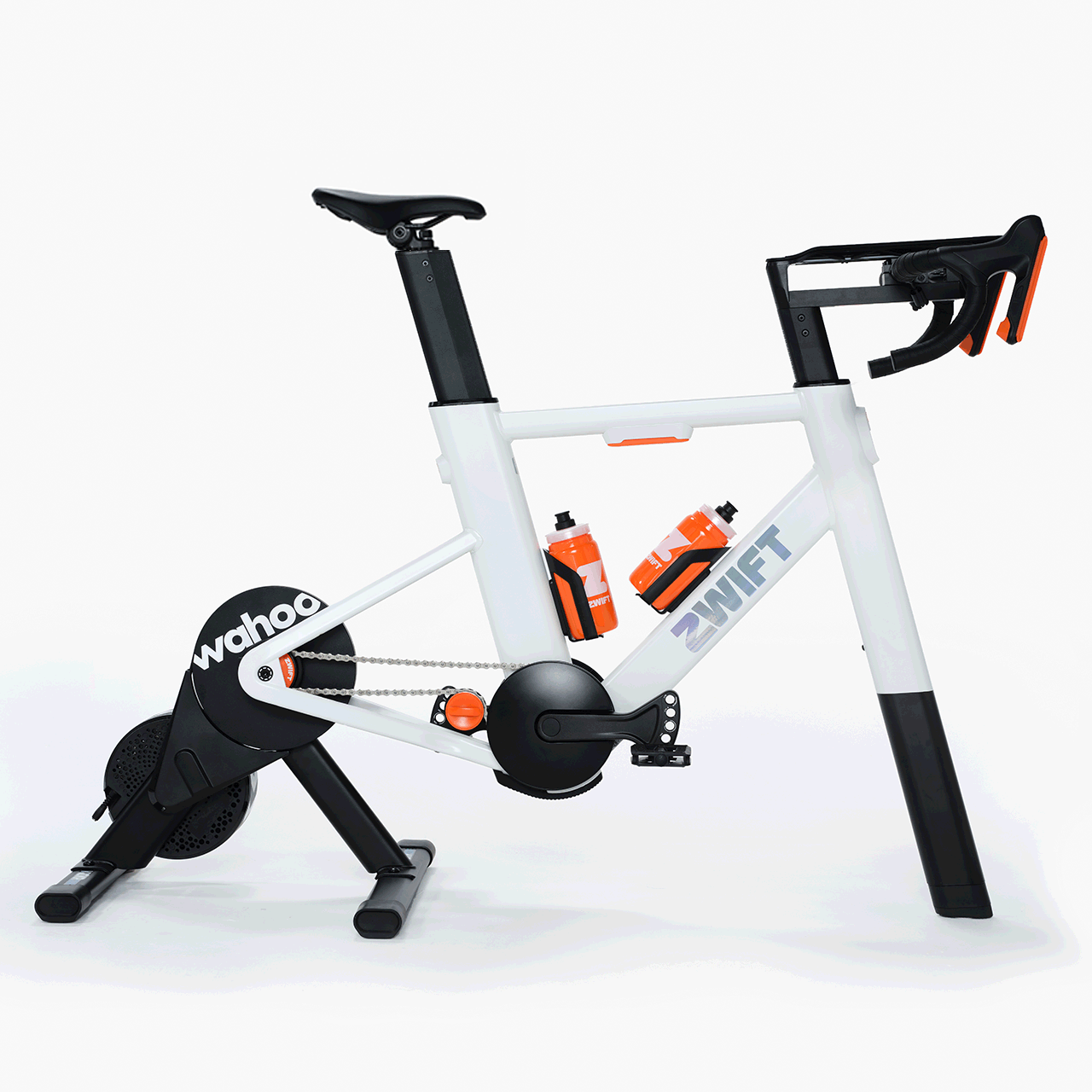

Upgrade to Zwift Ride Smart Frame and transform your Zwift Ready smart trainer into an always-ready, all-in-one smart bike. Unlock the full potential of Zwift with built-in handlebar controllers and customizable virtual shifting. Zwift Ride Smart Frame is easily adjustable, making it perfect for everyone at home. Keep your outdoor bike ready for the outdoors and upgrade to an all-in-one indoor cycling solution that’s always ready to go.

Check here to see if your smart trainer is compatible.

what's included

ZWIFT RIDE SMART FRAME

Frame with integrated controllers

Zwift Cog

Single Speed Sprocket

Features

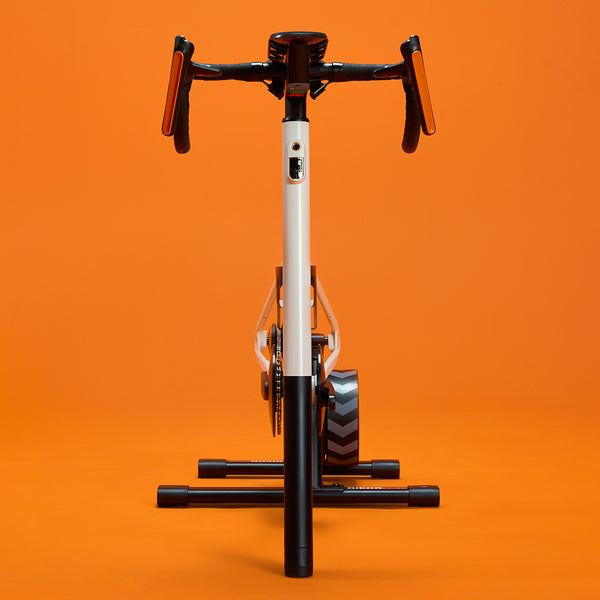

Quiet & Compact

Zwift Ride Smart Frame is powerful, yet keeps a low profile: it takes up less space than a traditional bike and trainer setup, and can be easily packed away and set back up again if needed.

Simple Setup

Set up the Zwift Ride Smart Frame easily on your own. All you need is the included Frame Key and a compatible smart trainer.

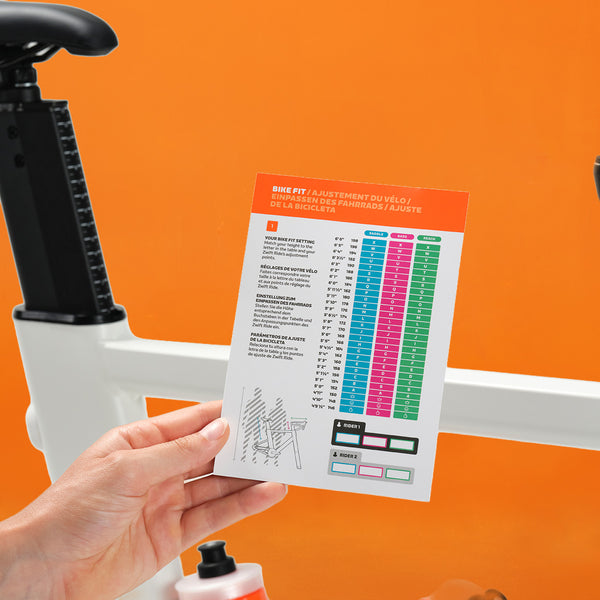

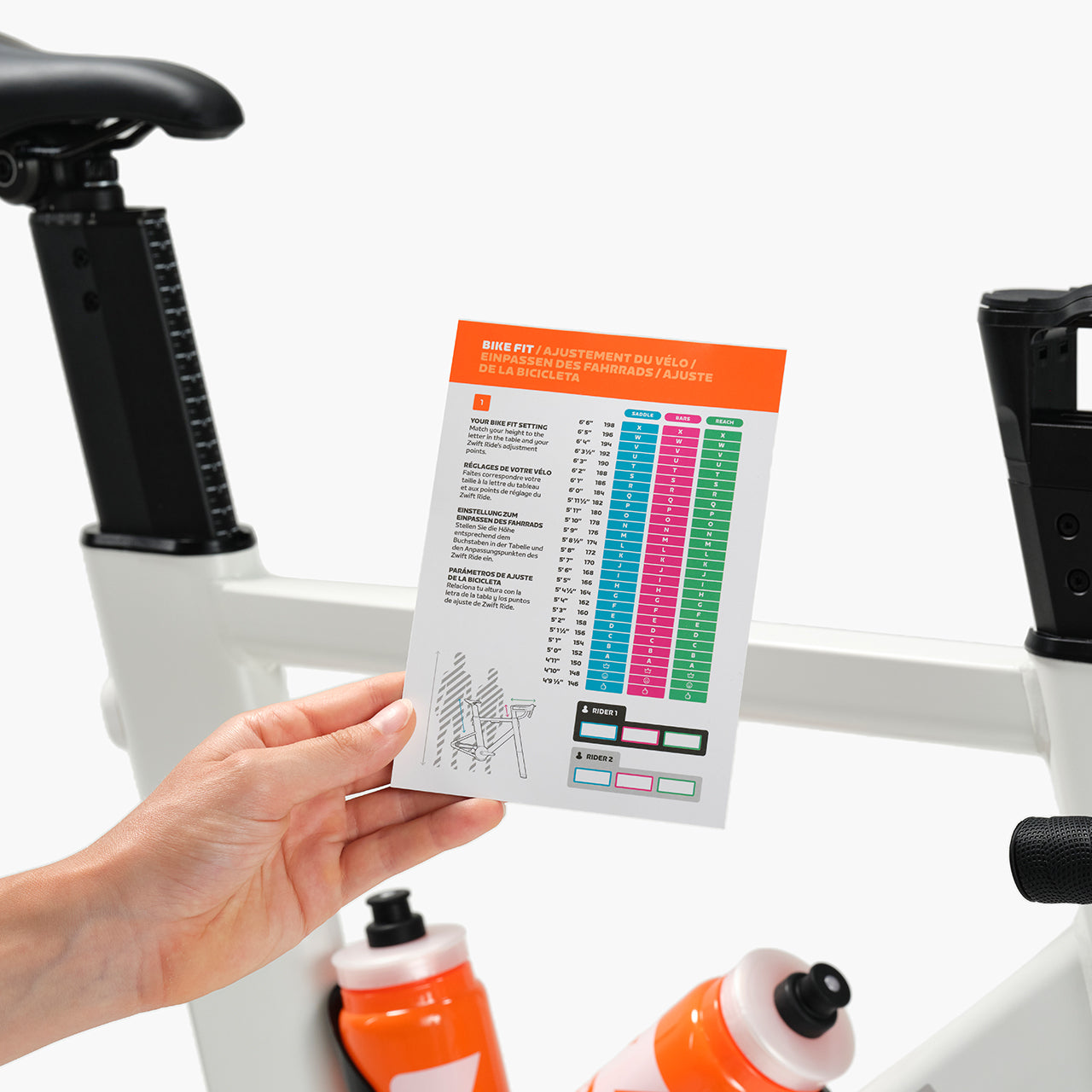

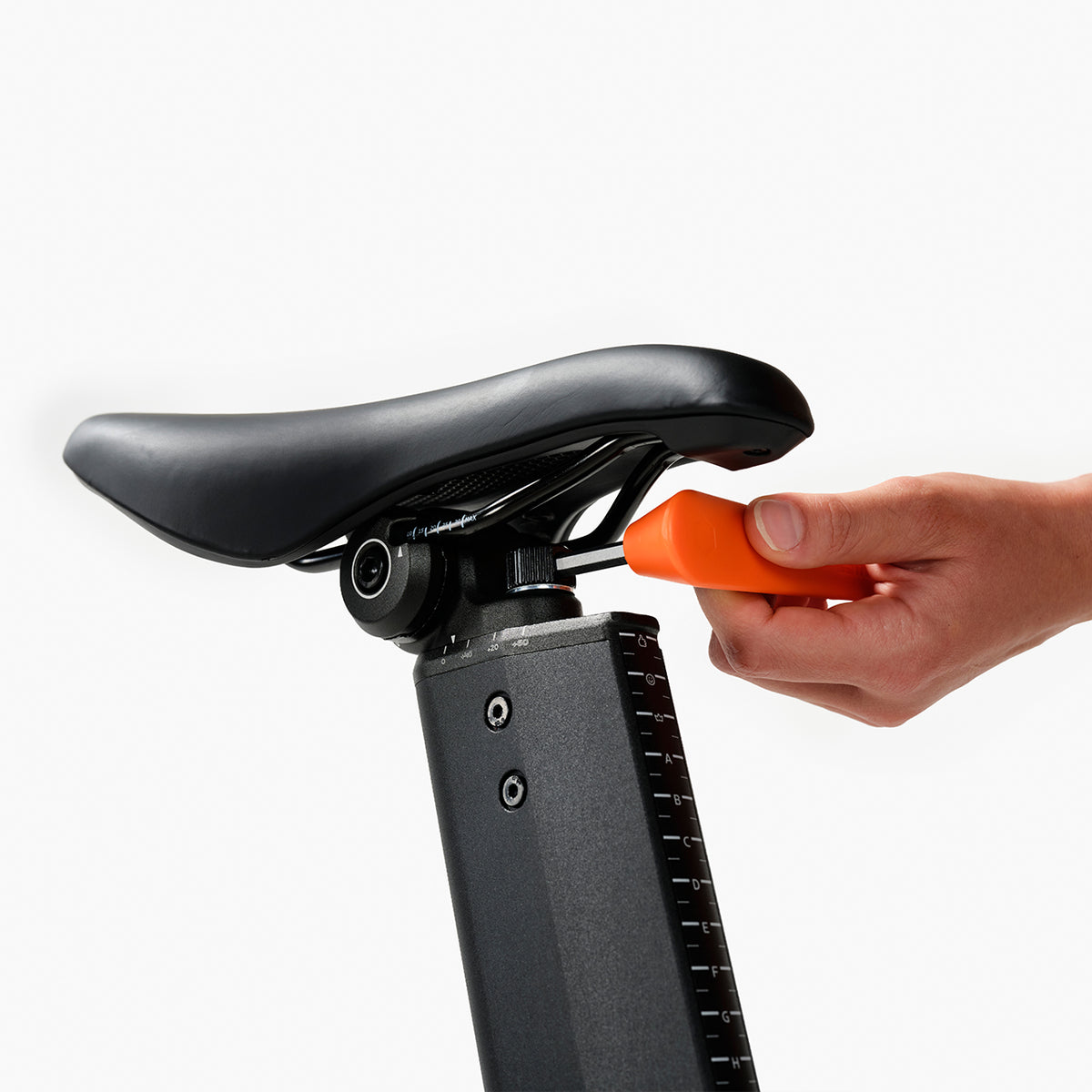

Easily Adjustable

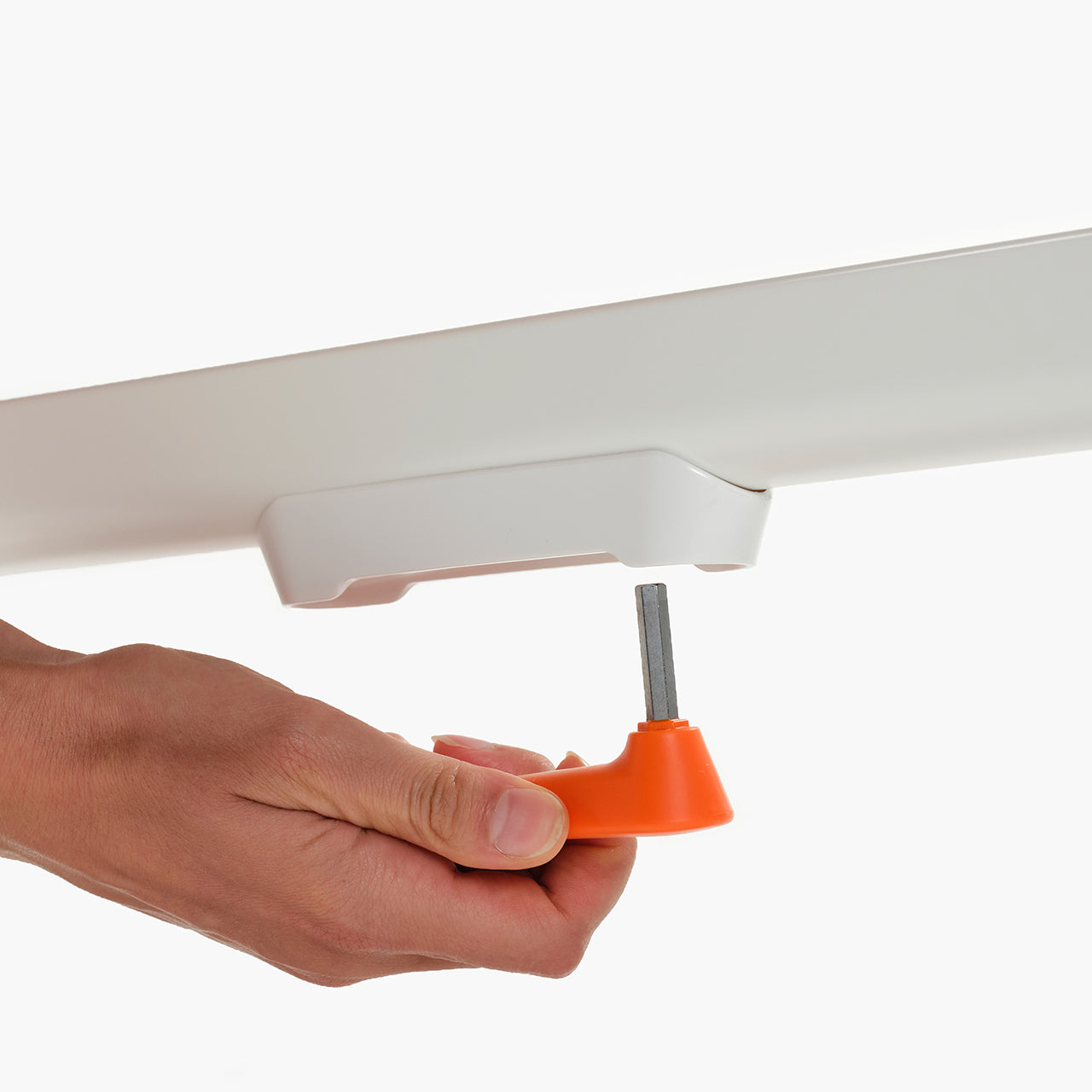

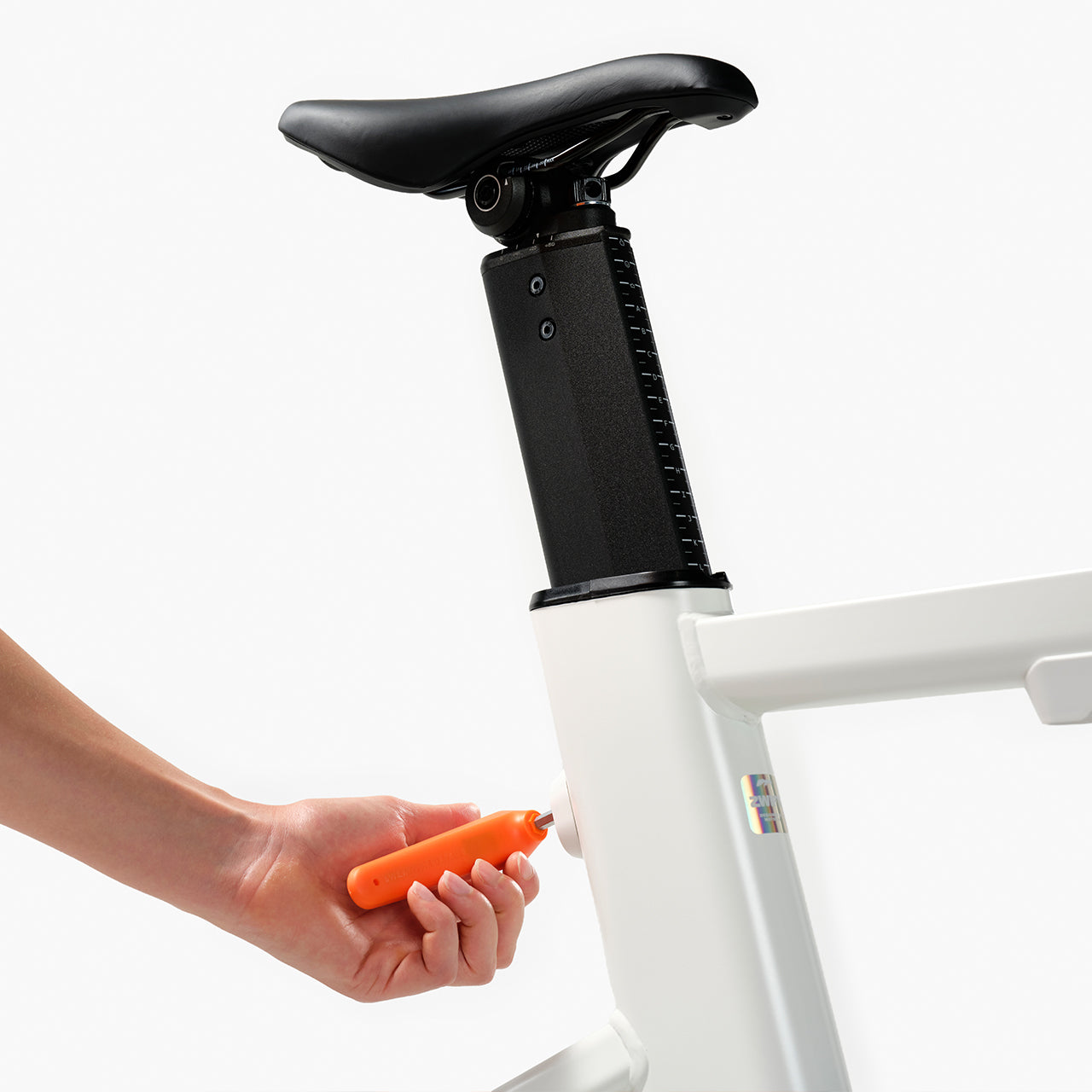

Zwift Ride Smart Frame is easily adjustable for riders between 5’ and 6’ 6”. All it takes to adjust the bike and share the fun is the Frame Key stored in the bike frame.

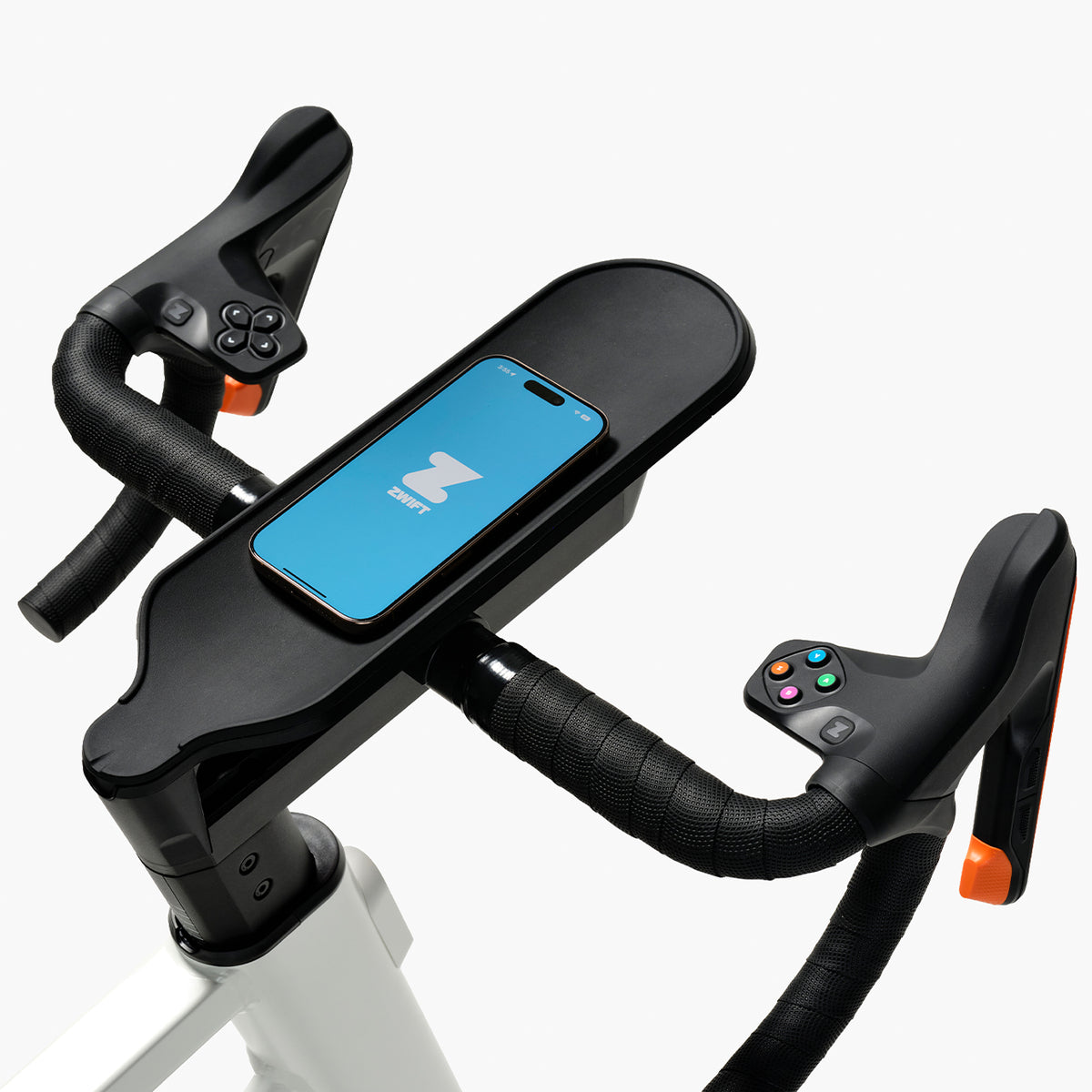

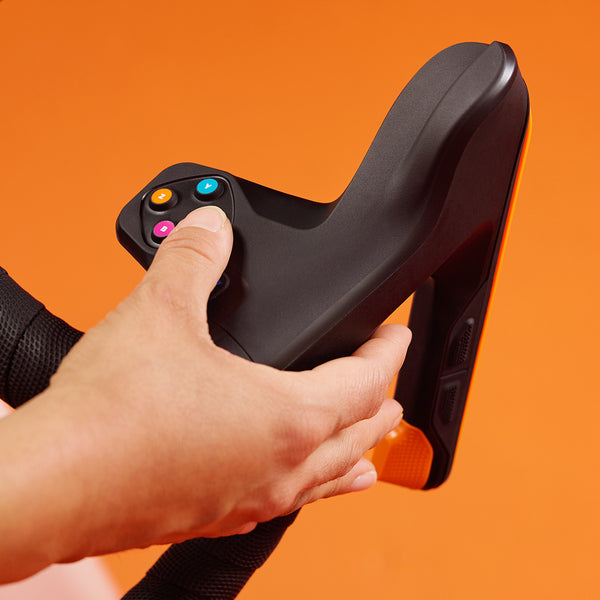

Effortless Control

Control Zwift easily from your handlebars. Queue workouts, use PowerUps, and send RideOns—all without pausing your ride.

Always Ready

Designed for the home, Zwift Ride Smart Frame is ready to ride whenever you are.

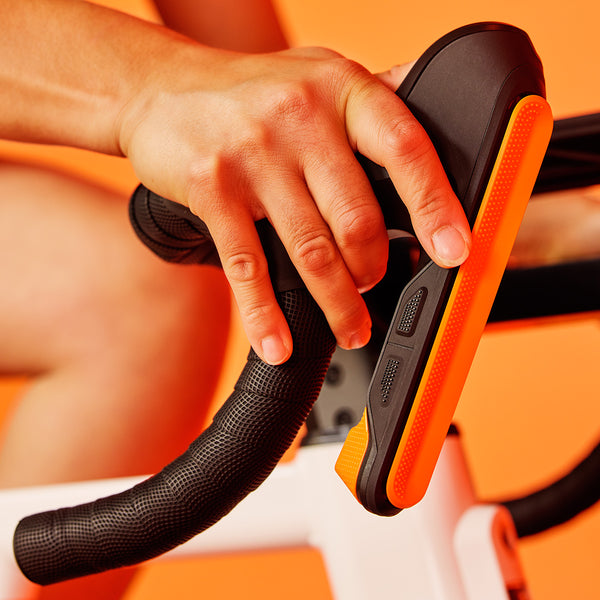

Smooth Shifting

Experience flawless, silent gear shifting with a customizable setup, ensuring you're always in the right gear for any route.

Tech Specs

Zwift Ride Smart Frame
Rider Fit Specs
Rider Fit Range:	152 - 198 cm
Saddle Height Min-Max:	61cm-87cm (center bottom bracket to top of saddle)
Stepover Height:	76 cm
Max Rider Weight:	120 kg
Crank Length:	170 mm

Product Dimensions and Frame Specs
Product Dimensions:	110 cm L x 43.2 cm W
Product Weight:	25.5 kg
Drivetrain:	Chain (KMC Z1 narrow 3/32" width)
Pedals:	Flat Included (compatible with standard road and mountain pedals)
Saddle:	160mm W x 245mm L

Additional Handlebar Specs
Handlebar Height Min-Max:	94 - 110 cm
Handlebar Width:	42 cm (center to center)
Integrated rechargeable controllers:	20 hrs. Per charge
Handlebar Controller Power:	Built-in rechargeable lithium-ion battery (1050 mAh)
Handlebar Controller Power requirements:	USB-A, 5v, 1A

Compatibility
Compatible with Zwift Cog v1 & Zwift Cog v2. Updated Zwift Cog v2 included with purchase.

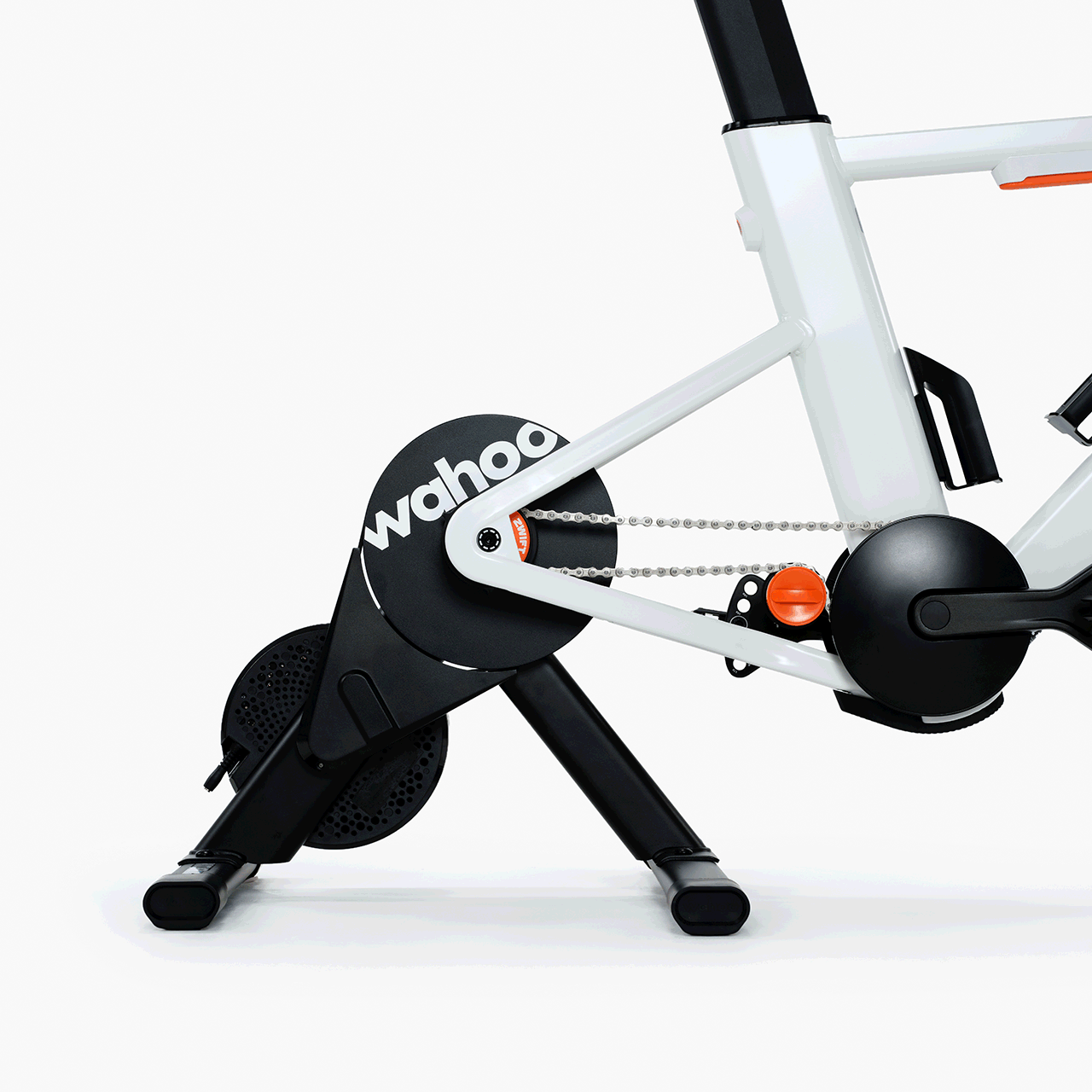

Compatible with a Zwift Ready smart trainer. Check to see if your smart trainer is compatible.
Update to latest firmware using manufacturer’s app.
Front Leg Riser Foot included for trainer height alignment

Connectivity
Not compatible with ANT+ dongles
In-game shifting, steering, and UI control via handlebars are wirelessly transmitted via Bluetooth
Apple TV users are required to pair through Zwift Companion app as a bridge to address the limited number of Bluetooth connections

More Details

Product & Shipping Details
This product ships in two separate boxes, so arrival times may vary.
Includes a 2-year limited warranty.
Modifying the product may void your warranty.
Do not store vertically.

Zwift Ride Handlebars
Box Dimensions:	53.5 cm L x 21 cm W x 23 cm H
Boxed Weight:	3.7 kg

Zwift Ride Smart Frame
Box Dimensions:	12.2 cm L x 23.5 cm W x 79. 5 H
Boxed Weight:	22 kg

Shipping & Returns
Shipping
Orders will be processed within 1-3 days business days
Transit time is 1–5 business days
60 € shipping charge applied at checkout

Returns
We offer a 30-day return policy on all products
Items should be in “like new” condition and returned in original packaging
Return delivery fees may apply, please check here for more details.

In The Box

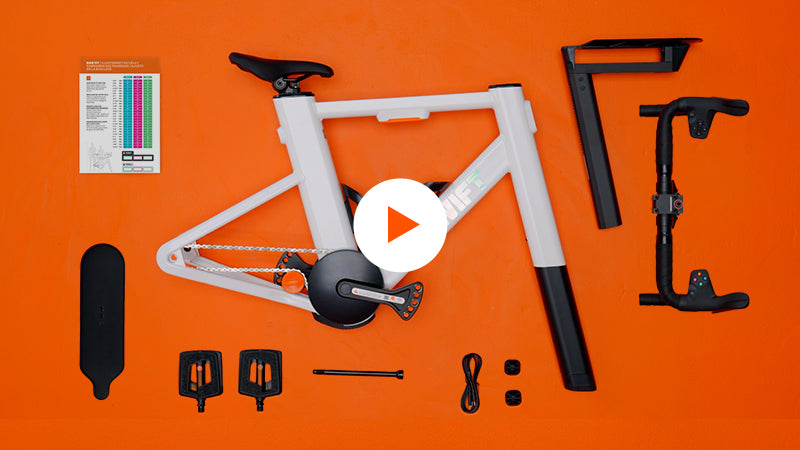

Zwift Ride Smart Frame Setup

This video covers the key steps to get your Zwift Ride Smart Frame set up. For more in-depth assembly and setup instructions visit our Zwift Ride setup page.

GO TO SETUP PAGE

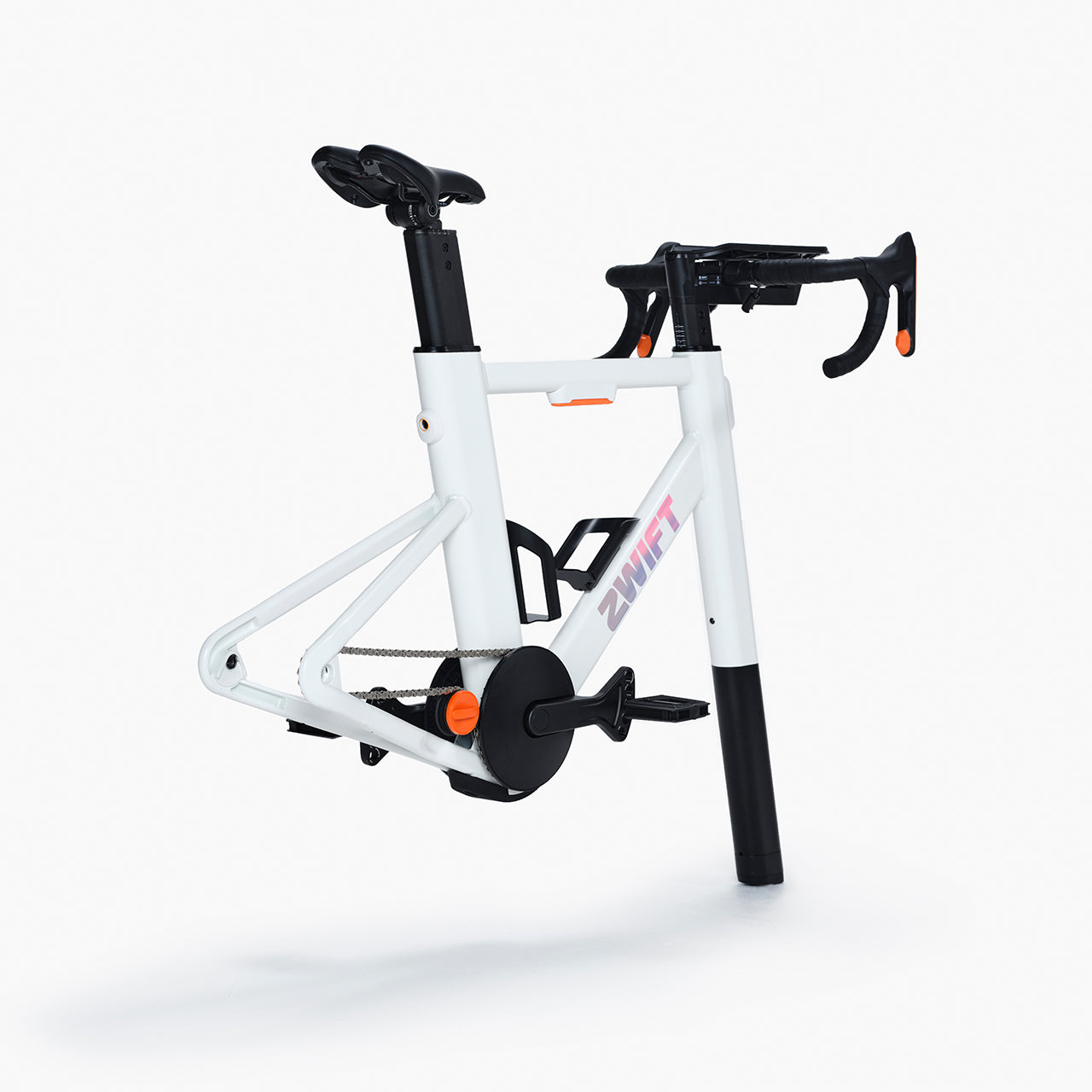

Zwift Ride Smart Frame

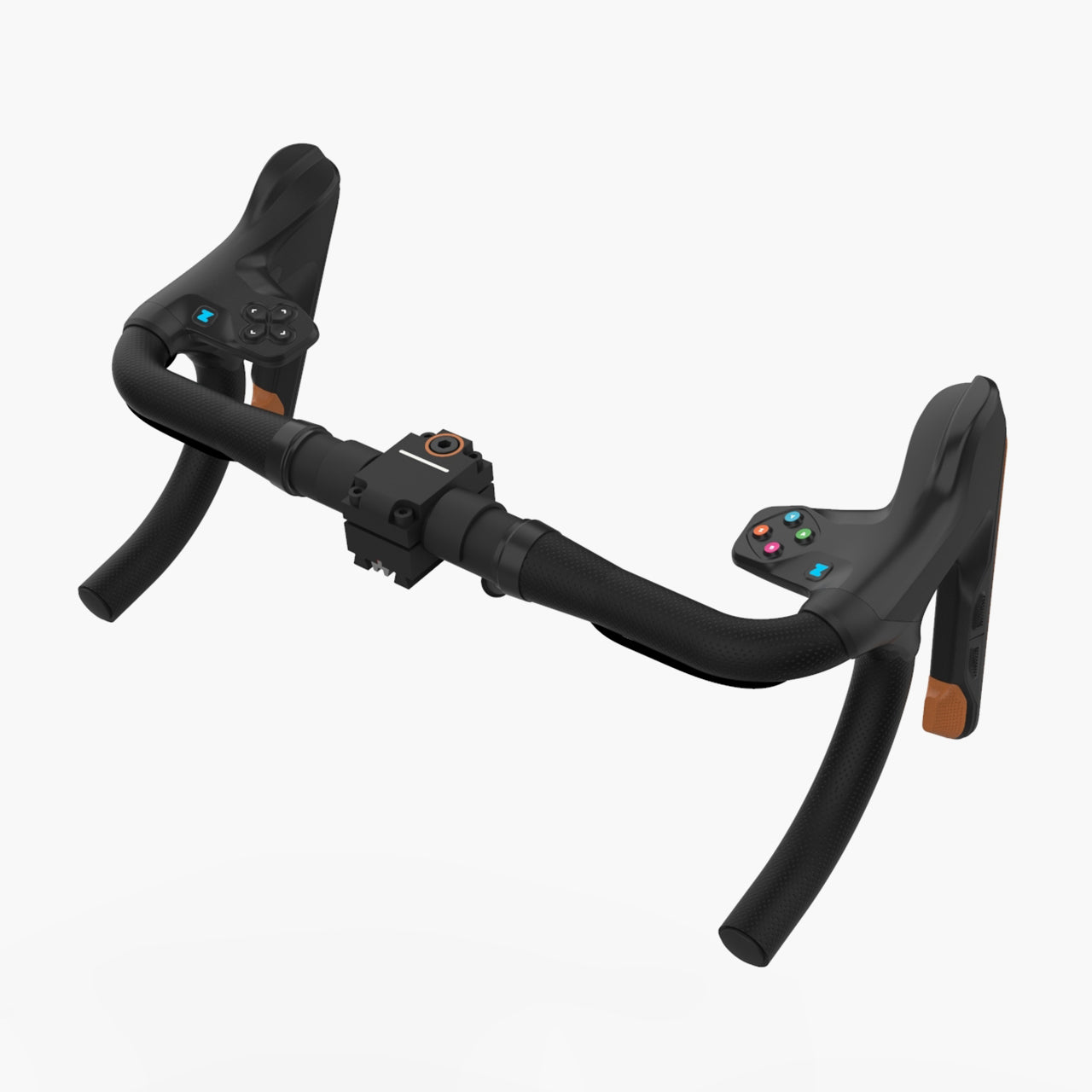

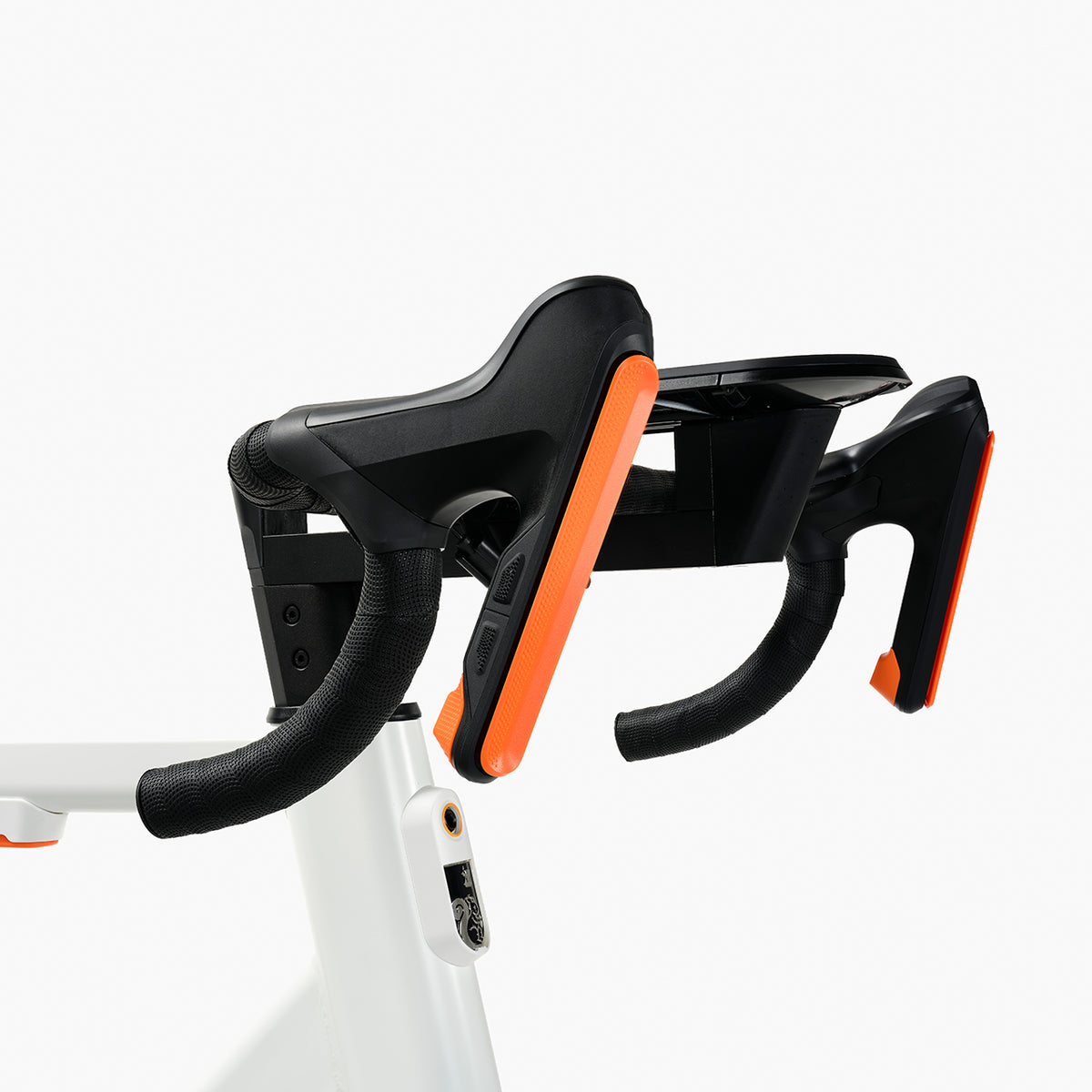

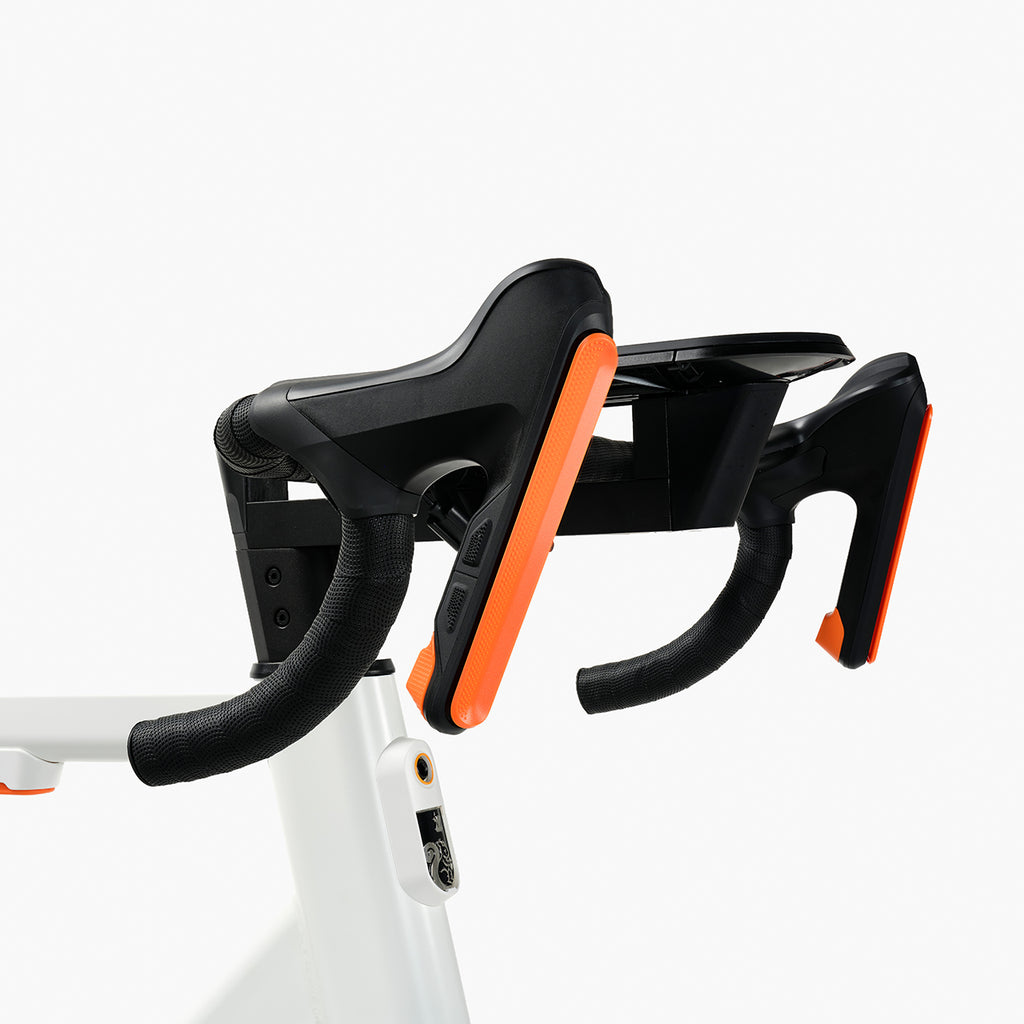

Handlebar with Controllers

Frame Key

Left & Right Pedals

Thru Axle

Riser Foot

Zwift Ride Smart Frame
